Obermühle

Mill property Obermühle ®
[AVIA-picture, Dipl.-Ing. Martin Jochum]

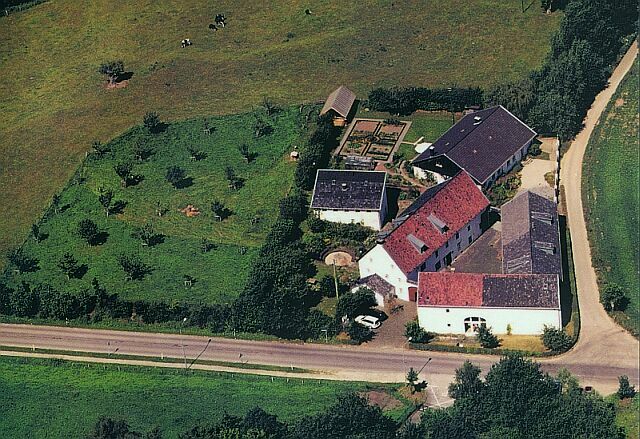

Mill property 'Obermühle' ® near Aachen, Germany

Auftrageber
Obermühle Forum Fort- und Weiterbildung e.V., Scherbstr. 171, 52072 Aachen-Horbach
Tel. 02407-18666 (Dr. Fitsch)

Object data
Location: Scherbstr. 171, 52072 Aachen-Horbach
Heated area: 500 m².
Guest rooms: 12.

Work completed
In this remedial project, completed in summer 1998, we rebuilt three heating systems, the hot water system supplying the kitchen and 12 guest rooms.
Here you'll find the energy savings table!
  • Remedial action was taken to achieve a reliably working heating system with uniform heat distribution in the floor, starting from a boiler which was only functioning sporadically to fire an under-floor heating system which could not be adjusted hydraulically.
  • Energy saving was achieved in the heating system of the conference building by hydraulic adjustments and control measures. The hot water system has now a special control and can supply 12 showers, even though the hot water tank is still too small.

Special circumstances
On the ground floor of the old mill property, underfloor heating installed, radiators in the upper floors.


The energy saving table for the 3 houses around the inner yard.

Year OT [░C] No. degree days liters/year normalized over 10 years
1995 11.3 3345 20454 20582.41
1996 9.3 3948 21884 18675.94
1997 11.1 3295 21721 22189.04
1998 11.0 3285 18111 18557.57
1999 11.6 3209 15590 16352.74
2000 11.6 3049 16109 17783.83
2001 11.0 3337 15600 15735.57
2002 11.6 3094 ~15760 ~17145.49
  total mean 18153.63 18375.57
What was the effect of the remedial action?
Long-term savings of about 1022 Euro for liquid gas every year!
1995-1997 Mean values before remedial action 21353.00 20476.46
1998-2002 Mean values after remedial action 16234.00 17115.04
  Savings [%] 23.97 18.4
Baseline: (No.░days 15º/20º) 1990-2000
10-year long-term no. of degree days
3366

~ estimated


The background

From 1988 to 1993, the 'Obermühle' ®, a protected mill property, was carefully restored and rededicated with the support of the NRW Foundation. The work was completed by young people in a training program for restoration of historical monuments.
The mill is to the north of Aachen in a region, parts of which are environmentally protected and are an attraction for walkers looking for relaxation.

2003 'Obermühle' ® changed hands. Part of it was sublet.
